GVM-120 2ME, up to 12 input production switcher
5 year warranty Connect to product manager Watch Brochure Get the price
- up to 12 HD/SD-SDI inputs and 2 CVBS inputs
- up to 7 HD/SD-SDI and 2 HDMI outputs
- Flexible 3 channel PiP function
- 7 Full Featured Keyers
- Integrated MultiViewer
- Audio Processing
5 year warranty Connect to product manager Watch Brochure Get the price
Broadster – new line of broadcast production switchers from “GURAMEX” company offering universal solution for most of the tasks of the broadcast market.
Each of the model from the given series has ergonomic compact design with intuitive understandable interface that makes operation easier and also provides high reliability during broadcasting.
At the same time a functional capability corresponds to its “large” and more expensive analogues, presented on market. Broadster maximally saves space and is the best solution as for small and medium studios as well for OB-Vans that suffer problems connected with lack of operation space.
Broadster GVM-120 has super slim design. It is optimal to use it in small studios and also at OB Vans, even the ones, designed in portable case basis with standard 19 inch rack.
Production switcher Broadster GVM-120 consists of two parts:
Switcher GVM-120H operates with HD/SD-SDI signals, but in addition has 2 CVBS inpuits. Using Auto Detection GVM-120H identifies type of incoming video signal, and frame synchronizers, built in each input, provide their synchronization.
Picture in Picture function allows overlay on output signal up to 3 scaled windows and display combinations without use of key channel but, in case of need, there is simultaneous distribution of 2 DVE resources to KEY and the "Picture in Picture” function.
Moreover, production switcher supports Advanced audio processing of Embedded and External Audio Signals in base configuration with ability to use also additional optional audio boards.
Enhanced integrated Multiviewer solution and built in wave form scope will be great help while keeping track of all signal sources production switcher operates with.
Since Broadster is a solution, corresponding to the broadcast market, first of all, Guramex took care of that it would operate stably without interruptions. Equipped with parts of the leading producers Broadster will operate 24/7 during many years.
You will not have to choose compactness on the expense of less functionality. We are so sure in reliability of our product that we provide 5 years warranty.
Each of the model from the given series has ergonomic compact design with intuitive understandable interface that makes operation easier and also provides high reliability during broadcasting.
At the same time a functional capability corresponds to its “large” and more expensive analogues, presented on market. Broadster maximally saves space and is the best solution as for small and medium studios as well for OB-Vans that suffer problems connected with lack of operation space.
Broadster GVM-120 has super slim design. It is optimal to use it in small studios and also at OB Vans, even the ones, designed in portable case basis with standard 19 inch rack.
Production switcher Broadster GVM-120 consists of two parts:
- Main Unit GVM-120H;
- Control Panel GVM-810c or GVM-1610c.
Switcher GVM-120H operates with HD/SD-SDI signals, but in addition has 2 CVBS inpuits. Using Auto Detection GVM-120H identifies type of incoming video signal, and frame synchronizers, built in each input, provide their synchronization.
Picture in Picture function allows overlay on output signal up to 3 scaled windows and display combinations without use of key channel but, in case of need, there is simultaneous distribution of 2 DVE resources to KEY and the "Picture in Picture” function.
Moreover, production switcher supports Advanced audio processing of Embedded and External Audio Signals in base configuration with ability to use also additional optional audio boards.
Enhanced integrated Multiviewer solution and built in wave form scope will be great help while keeping track of all signal sources production switcher operates with.
Since Broadster is a solution, corresponding to the broadcast market, first of all, Guramex took care of that it would operate stably without interruptions. Equipped with parts of the leading producers Broadster will operate 24/7 during many years.
You will not have to choose compactness on the expense of less functionality. We are so sure in reliability of our product that we provide 5 years warranty.
Inputs/Outputs
Broadster GVM-120 is featured with up to 12 HD/SD-SDI and 2 CVBS inputs with autodetection and frame synchronizer. Modular architecture allows changing configuration according user priorities. Along with that, GVM-120 has up to 7 free assignable HD/SD-SDI and 2 HDMI outputs for PGM, PVW, MV1, MV2 and Auxiliary outputs.
Auto Detection
Each input of Broadster GVM-120 automatically indentifies the type of signal its dealing with- digital or analog/HD or SD-SDI without any additional settings or equipment.
Frame Synchronizers
Production switcher is equipped with frame synchronizers at all inputs that allows mixing of any non-synchronous signals smoothly without interruptions, without use of additional external synchronization.
Internal / External synchronization mode
Production switcher can operate in both external/internal synchronization mode. In external synchronization mode the generator is carried out from the input reference signal.
ME Plus™
ME Plus™ – the newest development of Guramex – increases your production capabilities by creating additional ME, thus transforming Broadster GVM-120 into production switcher with 2 ME possibilities and spirit!
With ME Plus™ you gain:
Extra ME production possibility
Extra 2 Full-featured Keyers
Extra 2 Full-featured Keyers
Combined signal, created in ME Plus™ mode, can be used as an independent internal source in multi-line production. At the same time it can be delegated to auxiliary output and used as an independent program output of production switcher.
Keyers
The switcher provides wide opportunities for keying :
4 independent key channels
3 or 4 DSK channels
3 or 4 DSK channels
Unique Chroma-key, Luma-key, Video-Key and Preset Pattern are included in switcher basic configuration.
Moreover each of the scaled pictures from 3 channel PiP can be used as a key fill source.
Picture in Picture
Outstanding for small production switcher Picture-in-Picture performance.
|
Create combined image with up to 3 scaled pictures and background with possibility of Dynamic Transition of combined images. The pictures can be moved, resized, repositioned, cropped and given colored border. PiP can be used as an additional source without occupying DVE and keying channels. At the same time, in case of need, each of scaled pictures can be used as fill source for keying.
Up to 12 state of PiP function can be saved and delegated to buttons of “One Touch Section”. Single push of button provides transition between PIP states with defined duration.
|
 |
MultiViewer
Fully integrated, internal solution for the multi-screen image is at your service. Multi-Viewer allows you to display up to 12 video streams on a single screen in different modes.
Each video stream has its own audiometer, UMD and plenty of other markers. The source can be any external video signal, as well as master-channel, or any other internally formed signal.
The output signal has a resolution of 1920x1080 and is displayed via DVI-D / HDMI output.
Integrated Waveform Analyzer
Due to built in waveform scope there is an opportunity to display parameters of any video signal source.
Animated logotype Generator
Isolated, independent channel for displaying Animated Logotype. Supports most popular - A VI video format
Internal Video Clip Storage
Up to 96 own designed TV headband or background clips with total duration up to 5 min can be uploaded to the GVM-120 nonvolatile video storage.
Super Wipe
Along with standard cut, mix and wipe transitions you can enjoy with your own designed creative transitions, combined with graphic and audio. Up to 96 Super Wipe can be stored in the separate internal storage with duration up to 5 min.
Advanced Audio Processing
Production switcher supports advanced Embedded and External Audio Signal Processing:
Input and Output Audio Signal Level Control,
Audio Routing, Audio Mixing,
Embedding, Deembedding;
For each input you can easily :
- select audio couple which will be used for further processing inside switcher.
- adjust audio level.
Input and Output Audio Signal Level Control,
Audio Routing, Audio Mixing,
Embedding, Deembedding;
GVM-120H has audio input/output for 2 channel of Balanced Analog or 4 Channel of AES-EBU. Also can be installed optional card for audio inputs/outputs extension.
Audio Control for Inputs
Up to eight channels of audio may be extracted from each input HD/SD-SDI video signal.For each input you can easily :
- select audio couple which will be used for further processing inside switcher.
- adjust audio level.
Audio Control for Outputs
8 AUX Audio Output Lines are formed inside switcher and can be freely assigned for different purpose with audio level control. For example this feature enables user to create audio video follow simultaneously for different buses: M/E1PGM, M/E1 PVW, M/E2PGM, M/E2 PVW, KEY and AUX bus.Audio Master Mix Channel
In addition to 8 AUX Audio Output Lines GVM-120H has built in 1 Audio Master Mix Channel. So it like small audio switcher and can mix and control up to 6 audio sources including AUX Audio Output Lines.
Event Memory
Created to allow each user to save his frequently used switcher configuration, Event Memory memorizes up to 99 states, of which 12 can be assigned to hot recall buttons in “One Touch Section”
Macros Function
Allows to create editable user macros. Macro is a sequence of states and transitions that can be played automatically or step by step mode. Moreover through macros can be provided control via GPI.
Robotic Camera Control
Robotic Camera Control provides possibility to control the broadcasting process independently, by changing studio cameras position in certain range.
Cameras are simply controlled and adjusted by joystick. Zooming is also provided.
Any adjustment can be stored in Broadster's memory and easily recalled by pushing single button.
Cameras are simply controlled and adjusted by joystick. Zooming is also provided.
Any adjustment can be stored in Broadster's memory and easily recalled by pushing single button.
Software Control
|
Assistant Software Control allows you to control Main Unit and perform any necessary action directly from your PC.
You've got one more ace up your sleeve - Broadster Multi Platform! Turn your Android Tab or Smartphone into a Live Production Control Panel. Broadster Multi Platform gives you the freedom and flexibility to manage your work from many popular devices.
|
 |
Management interfaces
GVM-120 supports the following interfaces:
- GPI ports supporting 4 inputs and 4 outputs
- RJ45 Ethernet Ports
- RS-422 ports for connecting external devices
- 16 Tally outputs
GVM-120H Main Unit allows choose the configuration (number and type of production switchers Input/Output Cards). Modular architecture with distributed processing is provided to guarantee survivability of the system.
Main Processing Module
In Base configuration Main Unit GVM-120H comes with Main Processing Module which already contains inputs and outputs necessary to start fully functional production.
Main Processing Module Includes: 4 Video Inputs, 7 Video Outputs, Ref In, Ref Out, Audio In/Out
Video Inputs on Main Processing Module:
- In1, In2 (HD/SD-SDI or CVBS)
- In3, In4 (HD/SD-SDI)
- In1, In2 (HDMI) option
All inputs are with frame synchronizers and Format Converter
Video Outputs on Main Processing Module:
- 5 x HD/SD-SDI and 2 x HDMI Outputs
Free Assignable to PGM, PVW, AUX1-AUX5, Multiview1, Multiview2
Audio Input/Output:
2 Channel of Balanced Analog or 4 Channel of AES-EBU
Video Inputs on Main Processing Module:
- In1, In2 (HD/SD-SDI or CVBS)
- In3, In4 (HD/SD-SDI)
- In1, In2 (HDMI) option
All inputs are with frame synchronizers and Format Converter
Video Outputs on Main Processing Module:
- 5 x HD/SD-SDI and 2 x HDMI Outputs
Free Assignable to PGM, PVW, AUX1-AUX5, Multiview1, Multiview2
Audio Input/Output:
2 Channel of Balanced Analog or 4 Channel of AES-EBU
Inputs /Outputs Extension Cards

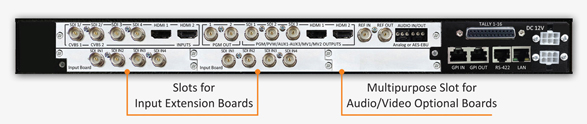

GVM-120H architecture allows customer to extend number of inputs up to 12 and outputs up to 9 while operating and chose type of inputs and outputs according to there needs.
Input Extension Card
In Slots for Inputs Extension can be installed 2 types of Input Card:
4xSDI_IN
4xHDMI_IN
4xSDI_IN
4xHDMI_IN
Optional Audio/Video Cards

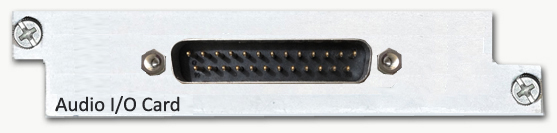

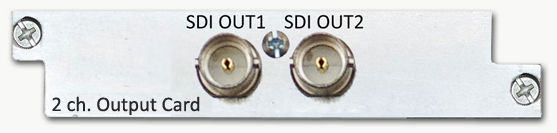

In Multipurpose Slot can be Installed additional optional Cards for outputs, audio i/o extension:
2xSDI_OUT
AUDIO_IN_OUT
2xSDI_OUT
AUDIO_IN_OUT
Interface Module
Interface module contains:
- 16 Tallies (F)
- RS-422 port RJ45
- LAN port RJ45
- 4GPI Inputs/4 GPI Outputs RJ45
- 16 Tallies (F)
- RS-422 port RJ45
- LAN port RJ45
- 4GPI Inputs/4 GPI Outputs RJ45

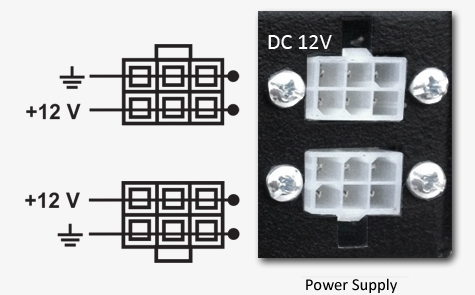

Power Supply
GVM-120H has:
- Main Power Supply DC 12V
- Optional Redundant Power Supply DC 12V
- Main Power Supply DC 12V
- Optional Redundant Power Supply DC 12V
|
Number of ME |
2 ME |
| __________________________________________________________________________________________ | |
| Inputs |
up to 12 HD/SD-SDI and 2 CVBS inputs BNC 75 Ohm x 12 ____________________________ |
|
Frame synchronizer on each input Signal type Auto-Detection |
|
| __________________________________________________________________________________________ | |
| Outputs |
5 (up to 7) HD/SD-SDI outputs 2 HDMI outputs All outputs free assignable to AUX1-AUX5, PGM,PVW,MV1,MV2 outputs BNC 75 Ohm x 5 HDMI x 2, Each: HD/SD-SDI |
| __________________________________________________________________________________________ | |
| Keyers | 8 or 7 Full-featuredkeyers (2 of ME, 2 of ME Plus, 3 or 4 of DSK) |
| Logo Inserter | |
| __________________________________________________________________________________________ | |
| Multi-Viewer | 2 channel Integrated Multi-Viewer |
|
Multi-Viewer free assignable to outputs: ____________________________ |
|
| Resolution: 1920x1080 | |
| __________________________________________________________________________________________ | |
| Audio In/Out |
2 Channel of Balanced Analog, or 4 Channel Digital AES-EBU |
| __________________________________________________________________________________________ | |
| Picture in Picture | 3 channels and background |
| __________________________________________________________________________________________ | |
| Animated Logo Generator | 1 channel |
| __________________________________________________________________________________________ | |
|
Internal Video Clip Storage |
2 channel |
| __________________________________________________________________________________________ | |
| Super Wipe |
 |
| __________________________________________________________________________________________ | |
|
Internal/External Synchronization Mode |
|
| __________________________________________________________________________________________ | |
|
Redundant Power Supply |
|
| __________________________________________________________________________________________ | |
| Macros |
|
| __________________________________________________________________________________________ | |
| Event Memory | Up to 1000 events |
| __________________________________________________________________________________________ | |
| Robotic Camera control |
|
| __________________________________________________________________________________________ | |
| Audio Processing |
|
| __________________________________________________________________________________________ | |
|
Removable Video Recorder Storage (optional) |
Soon |
| __________________________________________________________________________________________ | |
| Audio Input/Output (optional) | Soon |
| __________________________________________________________________________________________ | |
| Interfaces | RS-422; RJ-45 connectors |
| RJ-45 Ethernet Ports: 100Base-TX/100Base-T | |
| 4 GPI IN : RJ-45 | |
| 4 GPI OUT: RJ-45 | |
| Tally out:25-pin D-sub (female), 16 relay contacts | |
| __________________________________________________________________________________________ | |
| Video Format | 1080/50i, 576/50i |
| __________________________________________________________________________________________ | |
| Aspect Ratio | 4:3/16:9 |
| __________________________________________________________________________________________ | |
| I/O Signal Processing | 4:2:2 |
| __________________________________________________________________________________________ | |
| Internal Signal Processing | 4:4:4:4 20-bit |
| __________________________________________________________________________________________ | |
| Genlock Input |
SD BB: PAL 0.45Vp-pBNC 75 Ohm x 1, loop-through when Main Unit is switched off. ____________________________ |
|
HD BB:0,45 Vp-p or Tri-level Sunc:0,6 Vp-p 75 OM BNCx1, loop-through (Terminate with 75 OM terminator,if unused.) |
|
| __________________________________________________________________________________________ | |
| Genlock Output |
SD BB: PAL 0.45Vp-pBNC 75 Ohm x 2, loop-through when Main Unit is switched off. ____________________________ |
|
HD BB:0,45 Vp-p orTri-level Sunc:0,6 Vp-p 75 OM BNCx2, loop-through (Terminate with 75 OM terminator,if unused.) |
|
| __________________________________________________________________________________________ | |
| I/O delay |
Up to 1 frame when Frame Synchronization is used. Up to 2 frames when Frame Synchronization and DVE are used. |
| __________________________________________________________________________________________ | |
| Temperature | 5°C to 40°C |
| __________________________________________________________________________________________ | |
| Humidity | 20% to 90% (no condensation) |
| __________________________________________________________________________________________ | |
| Power | 110VAC to 240VAC ± 10%, 47/63Hz |
| __________________________________________________________________________________________ | |
| Consumption |
Main Unit: 130W max. ____________________________ |
|
Control Unit: 130W max. |
|
| __________________________________________________________________________________________ | |
| Dimensions |
Main Unit: 482mm(W)x 330mm(D) x 1U (H) ____________________________ |
|
Control Unit GVM-810c: 413mm(W)x 270mm(D) x 113mm(H) |
|
| __________________________________________________________________________________________ | |
| Weight |
Main Unit: 4kg ____________________________ |
|
Control Unit: 3.5kg |
|
